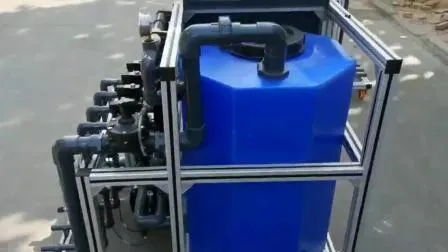

Greenhouse Fertigation Control System Intelligent Water and Fertilizer Machine

Overview

Basic Info.

Model NO.	ZN-8581
Sprinkler Type	Oscillating
Function	Dual Seeding and Fertilization
Size	110*50*140cm
Mechanization	Water and Fertilizer Integrated Machine
Transport Package	Wooden Package
Specification	customized
Trademark	ZN
Origin	China
HS Code	94069000
Production Capacity	5000sets/Month

Product Description

Fertigation System Introduction
The technology--irrigation system with integration of water and fertilizer--is an new high agricultural technology, and it's one of the most important measures to improve water use efficiency under protected cultivation. As the most important part in this new irrigation system, the water and fertilizer integrated machine that we produced uses total intelligent control, it's a computer controlled fertilizer injection machine that offers some of the latest computer technology with advanced software and instrumentation.Product Description
Features of fertilizer control system

1	The combination of fertilization and control can control the operation of the external hydraulic control valve in addition to the suction channel and the fertilizer injection pump, and can also control a main valve or a water pump to meet the user's requirements. Extremely accurate and reliable, prevents water and fertilizer waste while reducing environmental pollution
2	There are two modes of manual control and automatic control. The two modes can be switched freely. Optional mobile phone remote connection control with Android or IOS system.
3	The suction channel adopts Xinhe Venturi suction device, the system is reliable and easy to install and maintain system. With 3 channels as standard. which can be equipped up to 8. The suction volume of single suction channel can be adjusted from 25L/H up to 1000L/H.
4	EC, PH sensor can monitor the EC and PH value of the fertilizing liquid in real time and display it in EC and PH panel. It is convenient for the user to adjust the rate of fertilization in real time according to the need. The amount of fertilizer can be adjusted by controlling the valve on the fertilization channel. Ensures very precise and homogeneous nutrient dosing for greenhouse crops.
5	With system inlet pressure monitoring and alarm function, it has the automatic protection function. When abnormal operation of the equipment, the system can automatically stop.
6	All operation interfaces are in English and industrial-grade LCD touch screens are used to facilitate the user's observation, operation and use at the scene.
7	Using advanced intelligent sensor technology, PLC technology, computer control technology, control system adopts 2-tier network topology, Siemens PLC and industrial grade 1 LCD touch screen at the bottom. Easy to operate, reliable performance.
8	Rich historical records and data curves, storage methods can be saved and exported with commonly used SD card or U disk. And there is optional remote control for remote viewing

Advantage:

1. Energy saving and environmental protection, intelligent precision irrigation system can increase crop yield by 30%

2. Save labor, intelligent and accurate control of irrigation time, reduce transmission fertilization, watering costs by 50%

3. Fertilizer saving, intelligent precise flow control fertilizer, fertilizer saving 30%

4. Save resources, saving 70% water compared with traditional irrigation

1. Four-channel fertilization, single channel 250L/H

2.1.5KW stainless steel industrial fertilizer pump

3. Rated pressure of fertilizer injection is 8kg.

4. Fertilizer injection rate 1.2m3 \H

5. External area solenoid valve extended control function (expandable 256 channels)

6. 10 inch touch screen control

7. Automatic mixing and mixing function

8. Expansion of irrigation and fertilization technology

9. Head control of water source water pump

10. Irrigation mode: zoned circulation, timing and quantitative control.

11. It can monitor the total amount of fertilizer injection and instantaneous fertilizer injection in real time, monitor the working voltage in real time, and monitor and alarm all kinds of faults in real time. Extensible weather station, soil moisture. Internet of things platform, etc

FAQ

1. How long is the delivery time?According to different requirements of customers on greenhouses, delivery time is usually is within 16 days .2. What's your advantages?A. Competitive priceB. On-time deliveryC. Satified serviceD. Quality guarantee for productions3. Is your company foreign trade company or manufacturer?we are manufacturer. We have our own profressional team wihch covers design, development, production, quality insurance and logistics.4. Can you supply sample?Some parts on hand can be supplied for free and express charges will be required.5. Can your company supply greenhouse design?Greenhouse design can be supplied with design service charges required against your requirements on greenhouse.6.What size of the greenhouse?Products can be customized.
